Rotary Piling Rig Undercarriage

Murphy Construction Machinery (Shandong) Co., Ltd. is one of the leading manufacturers and suppliers of rotary piling rig undercarriage in China. If you're going to buy the newest rotary piling rig undercarriage, welcome to get pricelist from our factory. All customized products are with high quality and low price.

3 to 200 tons. Built around your machine, not the other way around.

Send us the mounting dimensions and duty cycle. We engineer the crawler undercarriage to bolt straight onto your drilling rig, crusher, or platform. Steel and rubber track systems, Q345B main beams, heat-treated rollers. No adapter plates, no guesswork.

Custom doesn't have to mean slow or expensive.

Structural modules stay standard, interfaces stay fully custom. Lead times in weeks, not quarters. Nabtesco, Brevini, or our own travel drives-your call. From compact crawler chassis to heavy-duty steel track systems, the engineering logic is the same.

A weight figure and a rough sketch are enough to start.

Steel undercarriages up to 80 tons and rubber systems up to 30 tons often have reference parameters we can adapt quickly. Larger capacities go through custom engineering. The proposal costs nothing. The conversation costs nothing.

Most undercarriage failures don't start with a broken part. Proper track design is application-specific. A 20t drill rig on soft ground needs different track geometry and ground pressure from a 20t crusher on uneven rock. Off-the-shelf undercarriage forces you to compromise-and the wear shows up months later, not on the spec sheet.

The real cost isn't the replacement parts. It's the downtime. A 30-ton machine with a failed track group can burn $25,000 to $40,000 in parts alone, plus three weeks of lost production. Planned sprocket replacement costs a fraction of that. Custom undercarriage lets you set the wear cycle on your terms, not the manufacturer's.

Whether you're building drilling rigs, mini excavators, or agricultural equipment, the undercarriage is the one system you can't afford to treat as an afterthought. Tonnage ratings from 0.5 to 150 tons exist, but the right number for your machine is the one that keeps your rollers, sprockets, and chains wearing evenly together. That's not a catalog spec. That's a conversation

 We customize crawler undercarriage systems ranging from 3 tons to 200 tons. Dimensions are determined by your actual operating conditions - ground type, gradient, and whether the machine travels or works in a fixed position.

We offer both rubber and steel track options. The structural steel beam and final drive selection are matched to your duty cycle. Share your machine type and application, and we will confirm the suitable track width, track gauge and ground clearance for you.

Our crawler undercarriage systems are built to fit a broad range of tracked equipment, from compact mini excavators and skid steer loaders up to 80-ton class drilling rigs and crushers.

Whether you operate compact utility machines, mid-size excavators, or heavy-duty equipment in construction, mining, or agriculture, we manufacture chassis that match your machine's specific track width, pitch, and load capacity.

If you are looking for OEM-compatible undercarriage replacements or a fully custom track system, just tell us your machine model and operating weight-we will take it from there.

From 500 kg utility carriers to 200-ton heavy crusher bases, our crawler undercarriage systems are built around your machine's mounting points, track length, gauge, and load distribution rather than forcing you into a stock frame.
Hydraulic final drives deliver consistent torque for drilling and excavation. Electric drives offer low-noise, zero-emission operation. Both systems share a compatible mounting platform for flexible application.

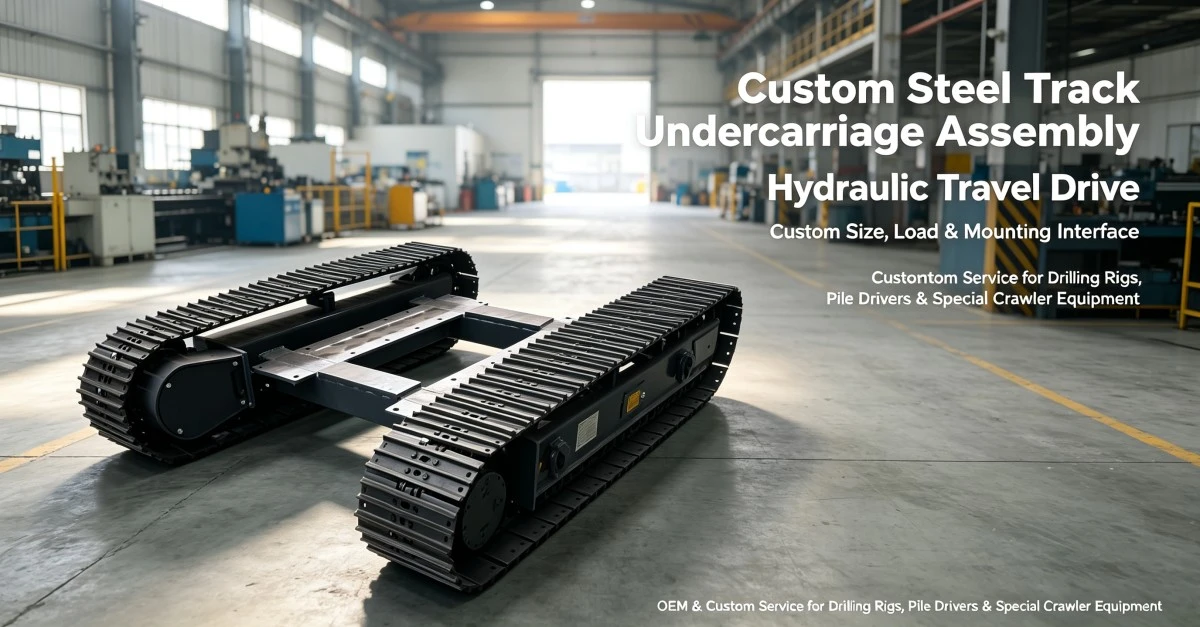

Our steel tracked chassis is built to custom drawings matching your bolt pattern and hydraulic flow. It supports direct bolt-on installation without on-site modifications. Send us your payload and application, and we'll offer a matching layout.

CODE NAME	TYPE	A	B	C	D	E	F	G	APPLICATION
MEFD270A	E	3181	3975	421	1058	600	880	1699	27T EQUIPMENT INSTALLATION VEHICLE
MEFD270B	A	3181	3975	421	868	600	369	1559	27T EQUIPMENT INSTALLATION VEHICLE
MEFP300	A	4131	4980	448	922	600	404	704	30T Mobile Crushing Station 9T PIPE LAYING MACHINE
MEFP350	A	3268	3994	371.5	740.5	400	261	510	30T Mobile Crushing Station
MEFP380	A	3793	4583	400	812	400	309	509	38t Mobile Crushing Station 35T MOBILE CRUSHING STATION
MEFD400	A	5163	5970	415	820	600	370	670	40T UTILITY VEHICLE
MEFZ430	C	3595	4598	518	1201	600	400	700	43T Rotary Drilling Rig
MEFP450	A	3965	4754	413	820	500	370	620	45T Mobile Crushing Station
MEFP500	A	3809	4625	420.5	850	500	390	659	50T Mobile Crushing Station
MEFP500A	B	3365	4163	400	818	500	459	709	50T Mobile Crushing Station
MEFP500B	A	3365	4163	400	818	500	459	709	50T Mobile Crushing Station
MEFP500C	B	3450	4255	400	824	500	418	668	50T Mobile Crushing Station
MEFZ500A	B	3930	4935	523	1130	600	453	753	50 Ton Drilling Rig
MEFP560A	A	3809	4625	420.5	851	500	370	639	56T Mobile Crushing Station
MEFP560C	B	3809	4638	420.5	852	500	423	629	56T Mobile Crushing Station
MEFP600A	A	3999	4813	420	851	500	370	639	60T Mobile Crushing Station
MEFP650	B	4187	5021	422	886	500	404.5	674	65T Mobile Crushing Station
MEFP700	B	4187	5021	422	886	500	404.5	674	70T Mobile Crushing Station
MEFP700A	A	4141	5000	441	889	500	354	674	70T Mobile Crushing Station
MEFZ700A	B	4960	5921	492	1135	700	500	850	70 Ton Drilling Rig
MEFP750	B	4141	5007	446	915	500	404	704	75T Mobile Crushing Station
MEFZ950	C	5369	6448	553	1421	900	500	950	95Ton Rotary Drilling Rig
MEFD1200	A	5611	6707	555	1281	900	522	972	120T Feeder machine
MEFD1300	A	6976	7957	506	1206	900	845	1295	130T Slope Tractor
MEFP1600	A	4690	5785	557	1291	600	638	958	160T Mobile Crushing Station
MEFD1900	E	6749	8051	662	1583	900	1645	1645	190 Ton Material Grabbing Machine

More technical parameters

 Engineered around a Q345B box-section beam, this crawler undercarriage delivers the structural rigidity OEM buyers expect from a 3 to 200 ton class unit, with a load capacity range covering 3 to 200 tons for steel tracks and 0.5 to 10 tons for rubber tracks.

Should you require 3D drawings or custom track width adjustments prior to order confirmation, our engineering team can deliver these promptly.

Murphy's engineering team handles chassis adaptation and custom undercarriage work for heavy-duty machinery. We start by reviewing your load capacity and site conditions, then design an undercarriage with stability tuned to your application.

Getting a custom crawler undercarriage that actually fits your machine starts with one honest conversation-tell us the tonnage you're working with and the ground it'll run on, and we'll tell you whether steel or rubber tracks make more sense for your 3-ton mini digger or your 200-ton drilling rig.

From there, our engineers run load calculations and send you a 3D drawing for approval before a single piece of steel gets cut. Only after you've signed off on the prototype do we move to production, and we keep talking through the final mounting details so the chassis bolts up to your upper structure without a fight.

 Heavy-gauge steel fabrications, in-house machining of every idler and roller, and full-penetration welding on the main frame - that's what separates a undercarriage that survives a decade in a quarry from one that fails in eighteen months.

We build the complete crawler undercarriage in our own facility, from steel plate to assembled unit, so tolerances stay tight and lead times stay honest. Whether you need a 3-ton rubber track undercarriage for a mini excavator or a 50-ton heavy duty crawler chassis for a drilling rig, the same QC process runs on every unit before it ships. Ask for a sample inspection report - you'll see exactly what we mean.

Canadian drilling contractors operating on swampy and permafrost terrain require a 30-ton-capacity tracked chassis. Their original track frames suffered persistent cracking over months of service. We engineered a custom steel tracked chassis with reinforced idler mounting and sealed rollers, achieving reliable performance with more than 4,000 hours of failure-free operation.

Quarry jaw crushers on rubber tracks waste shift time on frequent track tension adjustments

Heavy-duty chassis with upgraded recoil springs cuts downtime by ~70%

We quote 3–200 ton tracked systems tailored to your real site conditions and installation setup

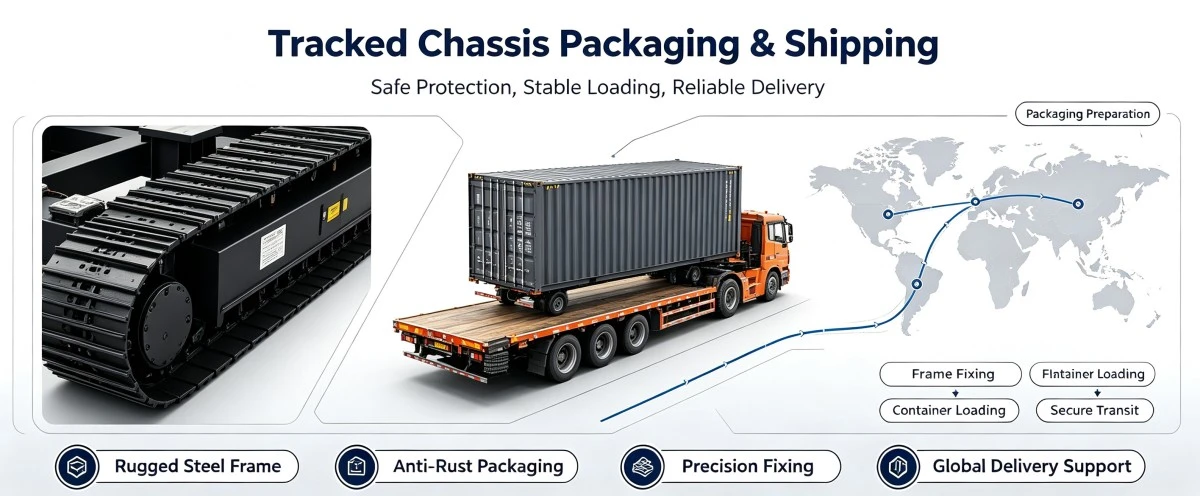

Every unit ships on fumigated wooden pallets with heavy-duty steel strapping and moisture barrier wrap, loaded into 20ft or 80ft containers for 3–200 ton capacity steel track undercarriages-no rust, no shifting, no surprises at destination.

We provide seaworthy packaging for oversized and heavy-duty crawler undercarriage orders. Packages feature reinforced steel framing and shock-absorbent filling to withstand rough handling at ports.

Murphy Construction Machinery (Shandong) Co., Ltd.

We engineer tracked chassis assemblies around the actual working conditions of each host machine. Track shoe width, chassis dimensions, load capacity, travel speed, and supporting components are all open to full customization based on what the customer needs. These tailored crawler solutions serve a wide range of applications in engineering, construction, and mining.



Professional Team

We make custom tracked chassis components tailored to how your equipment actually works-covering track shoe width, chassis dimensions, load capacity, travel speed, and more.

This integrated crawler undercarriage assembly fits drill rigs, muck loaders, and tunneling machinery. Every unit is sized to match the host equipment precisely, and ordering straight from our factory avoids middleman markups. We also handle bulk orders with flexible lead times, keeping large-scale equipment rollouts on track.

30+

production line

2000000⁺_meters

Annual output

100000⁺_㎡

Factory Area

236M

Projects Completed

Back To Home
