Murphy Construction Machinery (Shandong) Co., Ltd. is one of the leading manufacturers and suppliers of hydraulic walking track chassis in China. If you're going to buy the newest hydraulic walking track chassis, welcome to get pricelist from our factory. All customized products are with high quality and low price.
Product Details
The track chassis offers exceptional adaptability and flexible customization, allowing for on-demand adjustments to core parameters such as total track length, ground contact width, track shoe thickness, track gauge, and drive system configuration.
It features a modular integrated structure, enabling rapid installation and adaptation without requiring major modifications to the host machine's structure.

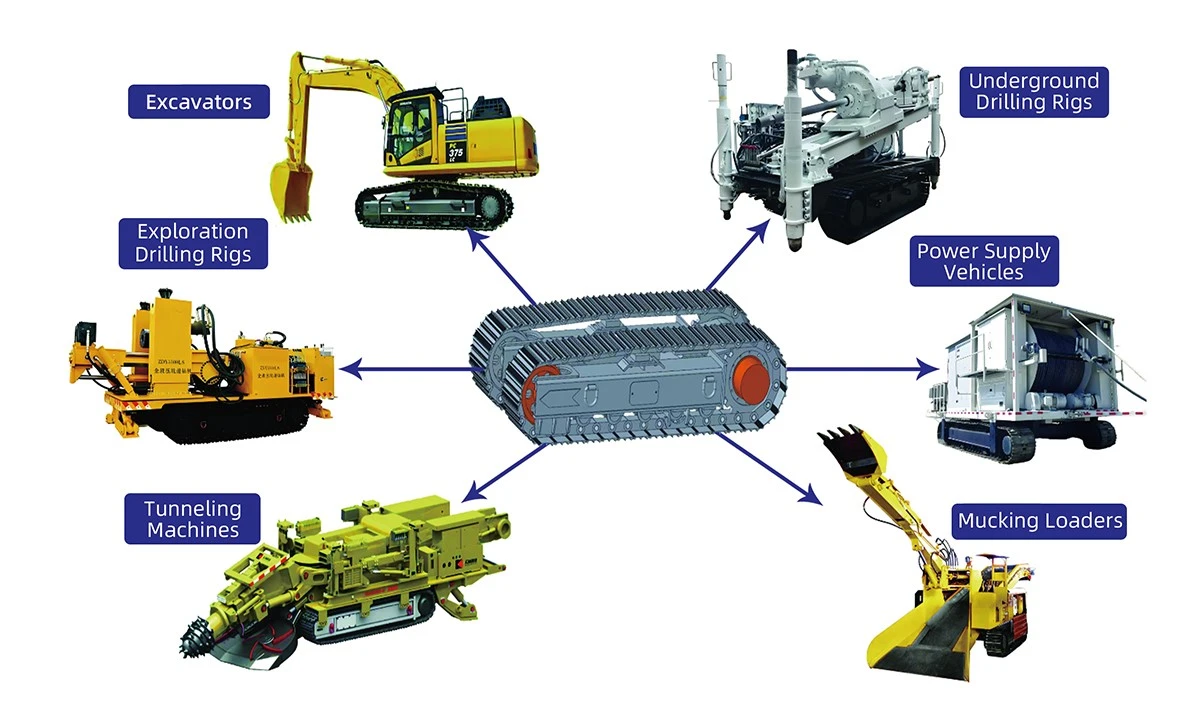

It easily navigates complex terrains-including muddy construction sites, narrow underground tunnels, loose sandy ground, and uneven farmland-thanks to superior traction, stable heavy-load capacity, and excellent off-road mobility. It is an ideal component for construction machinery manufacturers, equipment integrators, and engineering trading companies.
Product Advantages
The track chassis is designed to provide stable mobility and strong adaptability for heavy-duty equipment operating in complex environments. Unlike traditional travel systems, it uses a hydraulic walking mechanism to deliver smoother movement, better control, and reliable performance on uneven terrain, soft ground, and demanding job sites. The chassis structure is built with high-strength materials and optimized for heavy loads, helping reduce vibration and improve overall equipment stability during operation.
One of its key advantages is flexibility. The hydraulic drive system can be adjusted according to different working conditions, allowing the chassis to achieve precise movement and efficient power transmission. It is suitable for a wide range of applications, including construction machinery, drilling equipment, and specialized engineering vehicles. With customizable dimensions, load capacities, and connection designs, the hydraulic walking track chassis can be easily integrated into various equipment platforms while maintaining long-term durability and dependable performance.
Customized Design Solutions
Each application has unique and specific requirements. We can provide customized track chassis assembly solutions based on your device size, operating conditions, load capacity, track width, and drive system. Simultaneously providing OEM and ODM services to help customers shorten development cycles and improve equipment performance.
Durable Steel Structure
The undercarriage is constructed from thickened, high-strength alloy steel plates formed through integral forging, offering outstanding wear, impact, and compression resistance. It is built to withstand long-term, high-intensity, continuous heavy-load operations. The frame is structurally optimized for the off-center and heavy-load conditions typical of engineering equipment; it minimizes vibration under full load, ensures smooth operation, and adapts seamlessly to diverse working environments.

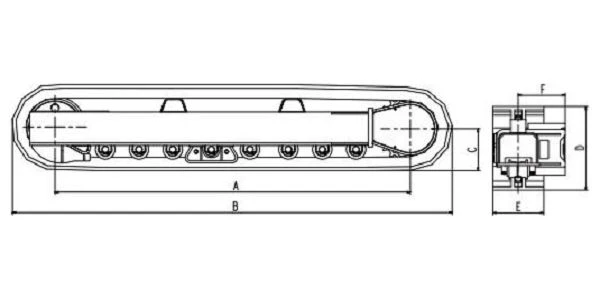

Technical Specifications (Hydraulic Walking Track Chassis Assembly Solutions)
|
CODE NAME |
TYPE |
A |
B |
C |
D |
E |
F |
G |
APPLICATION |
|
MEFD270A |
E |
3181 |
3975 |
421 |
1058 |
600 |
880 |
1699 |
27T EQUIPMENT INSTALLATION VEHICLE |
|
MEFD270B |
A |
3181 |
3975 |
421 |
868 |
600 |
369 |
1559 |
27T EQUIPMENT INSTALLATION VEHICLE |
|
MEFP300 |
A |
4131 |
4980 |
448 |
922 |
600 |
404 |
704 |
30T Mobile Crushing Station |
|
MEFP350 |
A |
3268 |
3994 |
371.5 |
740.5 |
400 |
261 |
510 |
30T Mobile Crushing Station |
|
MEFP380 |
A |
3793 |
4583 |
400 |
812 |
400 |
309 |
509 |
38t Mobile Crushing Station |
|
MEFD400 |
A |
5163 |
5970 |
415 |
820 |
600 |
370 |
670 |
40T UTILITY VEHICLE |
|
MEFZ430 |
C |
3595 |
4598 |
518 |
1201 |
600 |
400 |
700 |
43T Rotary Drilling Rig |
|
MEFP450 |
A |
3965 |
4754 |
413 |
820 |
500 |
370 |
620 |
45T Mobile Crushing Station |
|
MEFP500 |
A |
3809 |
4625 |
420.5 |
850 |
500 |
390 |
659 |
50T Mobile Crushing Station |
|
MEFP500A |
B |
3365 |
4163 |
400 |
818 |
500 |
459 |
709 |
50T Mobile Crushing Station |
|
MEFP500B |
A |
3365 |
4163 |
400 |
818 |
500 |
459 |
709 |
50T Mobile Crushing Station |
|
MEFP500C |
B |
3450 |
4255 |
400 |
824 |
500 |
418 |
668 |
50T Mobile Crushing Station |
|
MEFZ500A |
B |
3930 |
4935 |
523 |
1130 |
600 |
453 |
753 |
50 Ton Drilling Rig |
|
MEFP560A |
A |
3809 |
4625 |
420.5 |
851 |
500 |
370 |
639 |
56T Mobile Crushing Station |
|
MEFP560C |
B |
3809 |
4638 |
420.5 |
852 |
500 |
423 |
629 |
56T Mobile Crushing Station |
|
MEFP600A |
A |
3999 |
4813 |
420 |
851 |
500 |
370 |
639 |
60T Mobile Crushing Station |
|
MEFP650 |
B |
4187 |
5021 |
422 |
886 |
500 |
404.5 |
674 |
65T Mobile Crushing Station |
|
MEFP700 |
B |
4187 |
5021 |
422 |
886 |
500 |
404.5 |
674 |
70T Mobile Crushing Station |
|
MEFP700A |
A |
4141 |
5000 |
441 |
889 |
500 |
354 |
674 |
70T Mobile Crushing Station |
|
MEFZ700A |
B |
4960 |
5921 |
492 |
1135 |
700 |
500 |
850 |
70 Ton Drilling Rig |
|
MEFP750 |
B |
4141 |
5007 |
446 |
915 |
500 |
404 |
704 |
75T Mobile Crushing Station |
|
MEFZ950 |
C |
5369 |
6448 |
553 |
1421 |
900 |
500 |
950 |
95Ton Rotary Drilling Rig |
|
MEFD1200 |
A |
5611 |
6707 |
555 |
1281 |
900 |
522 |
972 |
120T Feeder machine |
|
MEFD1300 |
A |
6976 |
7957 |
506 |
1206 |
900 |
845 |
1295 |
130T Slope Tractor |
|
MEFP1600 |
A |
4690 |
5785 |
557 |
1291 |
600 |
638 |
958 |
160T Mobile Crushing Station |
|
MEFD1900 |
E |
6749 |
8051 |
662 |
1583 |
900 |
1645 |
1645 |
190 Ton Material Grabbing Machine |
|
Note:1.The above are standard products,which can also be customized and manufactured according to the customrt's demands. |
|||||||||
View More Technical Parameters

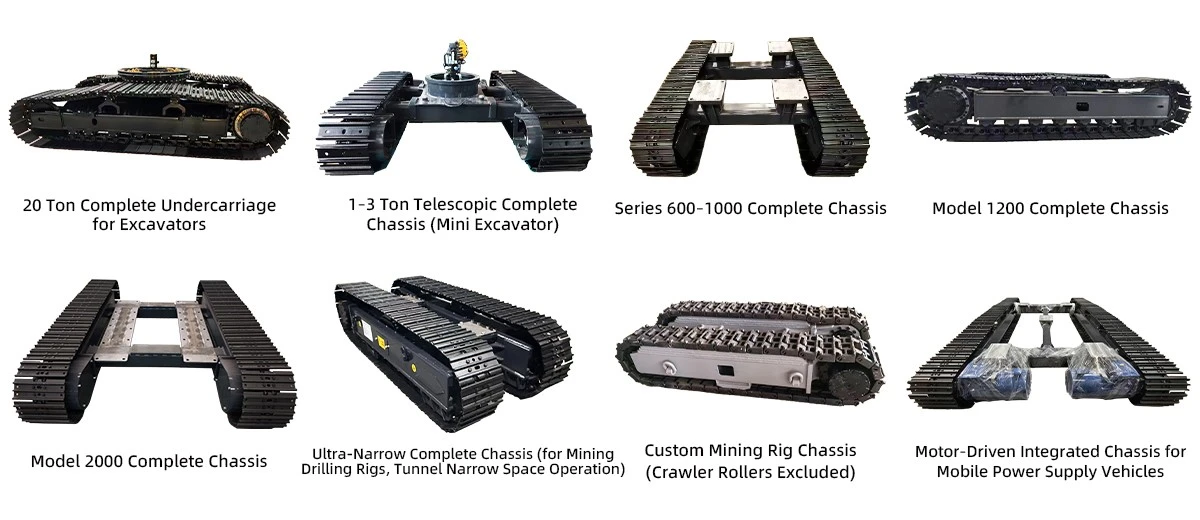

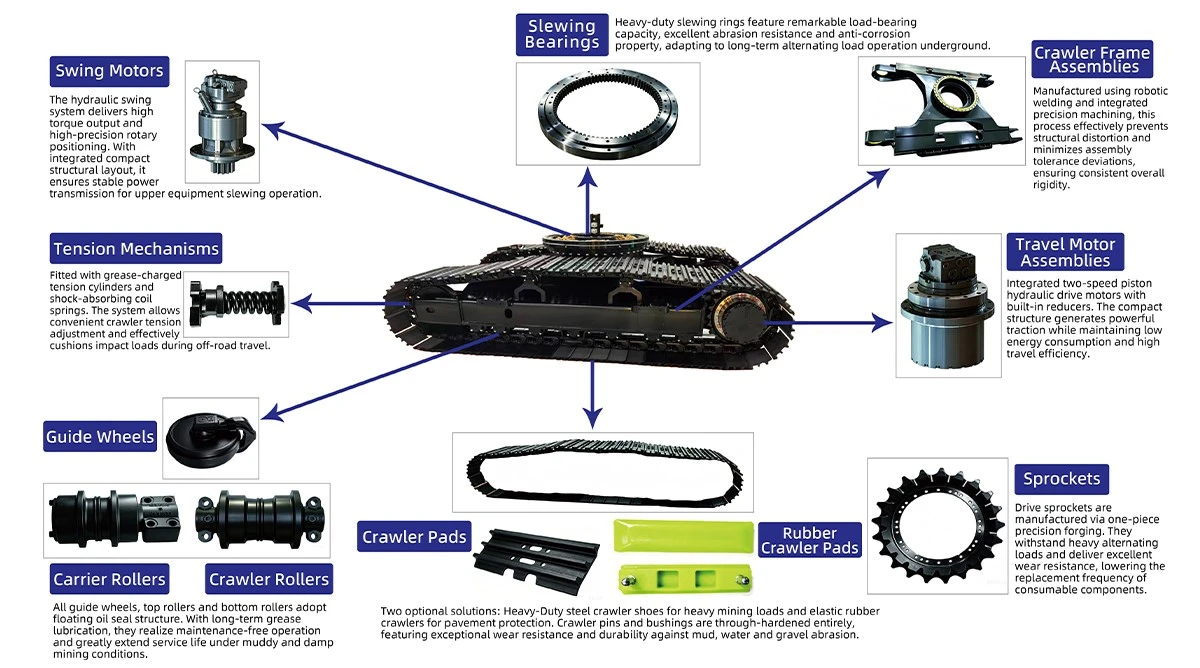

Chassis Components
This style features an enhanced frame and stronger track links. It is suitable for projects where extra durability and reliable performance are needed.
Factory Production Line
Components are precision-formed using laser cutting and CNC bending, ensuring tight dimensional tolerances and high structural uniformity. Automated robotic welding ensures consistent, robust welds while minimizing thermal deformation and maintaining structural integrity. Critical mounting surfaces and locating holes are precision-machined on gantry machining centers to guarantee assembly accuracy.
Workpieces undergo professional shot-blasting to remove surface impurities, followed by automated painting and high-temperature curing to significantly enhance corrosion and rust resistance. Final assembly follows strict standardized procedures; all bolts are secured with thread-locking compound and tightened to specified torque values to prevent loosening during long-term operation and ensure reliable performance.

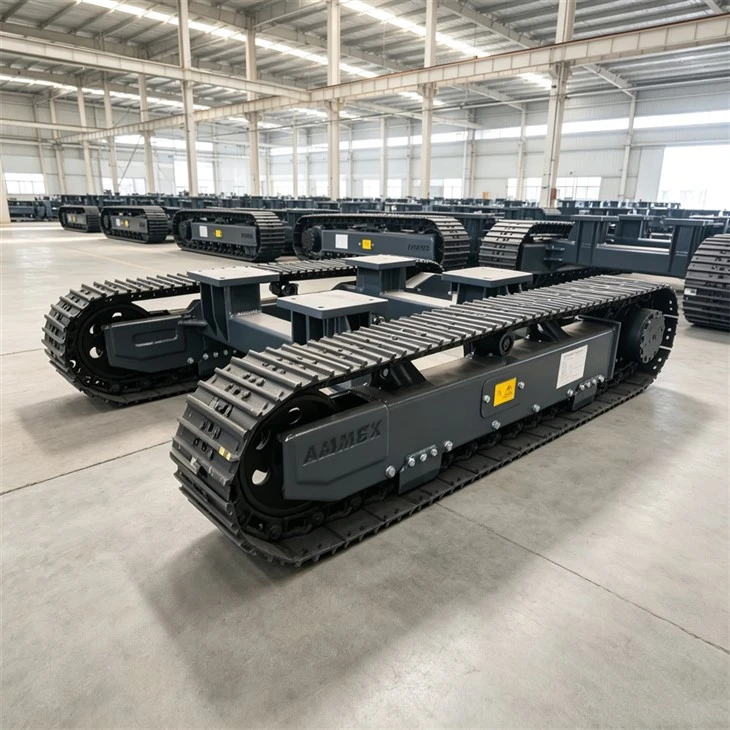

Factory Scene
Established in 2022, Moerfei Engineering Machinery (Shandong) Co., Ltd. is a leading construction machinery manufacturer in China, integrating research and development, production, sales, and service. With 10 years of experience, it is renowned for its technical strength, quality system, and global service. Its headquarters is located in Jining City, Shandong Province, China.
Hydraulic Walking Track Chassis Loading & Shipment
Our heavy-duty tracked chassis are fully manufactured and carefully loaded for delivery.
All products undergo strict quality inspection before shipment, securely wrapped to avoid damage during transit.
Custom steel tracked undercarriages are widely applied to drilling rigs, engineering machinery and special off-road equipment.
We support customized dimensions, load capacity and drive solutions, arranging timely delivery for global clients.
The Customer's Evaluation Of Us
Pre sales: precise matching+zero trial and error cost
Deeply cultivating experience in supporting working conditions in more than 30 countries overseas, we provide customers with one-on-one working condition selection, parameter matching, and customized solutions for different scenarios such as muddy infrastructure in Southeast Asia, high-temperature deserts in the Middle East, heavy-duty mines in Europe and America, and mountain operations in South America.
Based on the load capacity, operating environment, and size requirements of the customer's host equipment, we provide free structural drawings, technical parameters, and comparison of adaptation solutions to eliminate issues such as incompatibility with universal models, lack of durability in working conditions, and unsuitable installation.
On sale: controllable delivery+quality assurance
Relying on intelligent production lines and mature mass production systems, achieve standardized production and full process quality control traceability of track chassis assemblies. From the selection of wear-resistant steel raw materials, precision machining, heat treatment strengthening, to finished product load testing and factory pressure testing, we ensure uniform accuracy and stable quality for bulk orders.
Support rapid production scheduling for standard spot goods, specialized research and development for non-standard customization, and flexible adaptation to small batch samples and large batch full container export orders. We provide synchronized production progress reports, factory quality inspection videos/photos verification throughout the process, and work with a professional foreign trade team to complete customs clearance, logistics coordination, and document docking, efficiently ensuring delivery timeliness.
After sales: Global long-term worry free guarantee
Provide technical support such as remote device installation guidance, usage debugging, and optimization of working conditions, maintain a stock of core chassis accessories, achieve rapid replacement of spare parts, and significantly shorten maintenance cycles.
Long term provision of technical Q&A, equipment maintenance guidance, and suggestions for upgrading and renovating working conditions to overseas customers, continuously reducing equipment failure rates and maintenance costs. With years of high-quality overseas supplier service standards, we provide full cycle technical support for global partners, ensuring long-term high load stable operation of equipment and maximizing customer production efficiency and investment returns.
Exhibition
FAQ
Q: What is the minimum order quantity (MOQ)? Is stock available? What is the lead time?
A: The MOQ is one unit, with support for individual customization. Standard stock items ship in 7–10 days, while custom orders take 15–25 days; production schedules can be adjusted for large orders to shorten delivery times.
Q: Can the undercarriage width and total length be customized?
A: Dimensions such as length, width, track gauge, ground clearance, and mounting flanges can be customized. Upon contract signing, we provide 2D drawings, 3D models, and assembly dimension diagrams to facilitate quick integration with the customer's equipment.
Q: Do you support customization of steel undercarriages across different tonnage ranges?
A: We offer OEM/ODM customization for the full range of 3–200 ton capacities, suitable for heavy machinery such as exploration rigs, muck loaders, rotary drilling rigs, and mini-excavators.
Q: Do the products hold export certifications such as CE or EAC?
A: The complete machine and its core components hold CE certification, and all necessary documentation for customs declaration, clearance, and proof of origin is fully prepared; we assist overseas clients in expediting customs clearance to save time.
Q: What is the warranty period for the complete machine?
A: The complete machine comes with a standard one-year warranty. We maintain a steady, continuous supply of wear parts-such as track chains, drive sprockets, idlers, and track rollers-in stock.
Q: What packaging is used for shipment? How are sea or land freight costs calculated?
A: The machine is finished with anti-rust paint and secured with steel and wooden framing to effectively prevent damage from bumps or impacts during transit. We offer various international trade terms (such as FOB, CIF, and DDP) and can accurately calculate sea or land freight costs based on the shipping origin and mode of transport.
